TOOLS FOR HOLDING

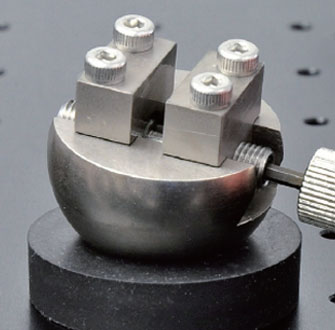

Sphere Vice


Features

Leveling surface on fixed sample, angle adjustment after fixation can be performed freely.

  • Also after fixing a sample, it is the spherical vice which can change a vice-angle briskly.
  • Since a base made from rubber, the fixation stable at arbitrary angles is possible for it.
  • Since a vice-opening-and-closing handle is a removal type, it becomes very compact at the time of use.

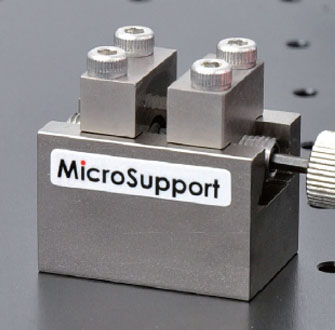

Pocket Vice


Features

Easy use with cube-shaped vice

  • Since it is cube form, fixation of the level or perpendicular can be performed simply.
  • It is the compact size which can be used even if it fixes to large-sized vice.
  • Since a vice-opening-and-closing handle is a removal type, it becomes very compact at the time of use.

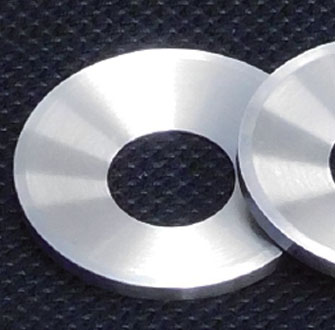

Specimen Weight


Features

Possible to hold a sample by weight

  • It weighs down and exerts stable pressure
  • It is “Specimen Weights” very convenient from sheet-like samples, such as a film without a nonwoven fabric and the waist, to a sampling.
  • Fixation is the best for a difficult sample at pressure sensitive adhesive tape, such as a double-stick tape mending tape. It corresponds to a use wide range from the minute foreign substance sampling using a manipulator to stock work under a substance microscope etc.
  • At a film-like sample, when cutting is required, it is one piece. In the case of the fibrous sample which is a nonwoven fabric and to wrinkle, an application range spreads further by using it combining two pieces. Since two pieces are a set, please use it, combining freely.

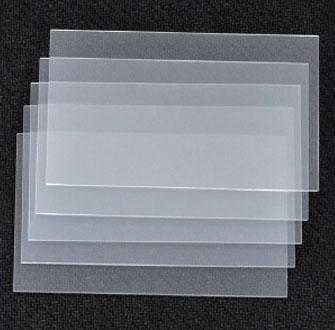

Grip Sheet


Features

Easy setting sheet to hold a sample.

  • It is a thin adhesion sheet very convenient when it fixes a sample to the stage of a microscope.
  • It can remove easily, without paste remaining in a subject, since adhesiveness is not on the grip sheet itself. Since two kinds from which grip power is different are prepared, it can choose according to a subject.
  • Fixation of glass, a wafer, a substrate, a film, and a metal specular surface sample has an effect.
  • Since a sheet is a transparent material, it does not bar the light volume in a transmitted illumination environment required for the foreign substance check inside resin, either. Moreover, by the impact absorption by moderate elasticity, while preventing breakage of a hard tool etc., it can contact soft to a subject.

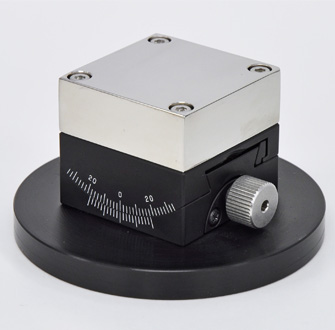

Tilted Unit


Features

It is an tilted unit very convenient for thickness measurement, analysis, etc. of each class, such as a lamination sample.

  • It can cut to arbitrary angles of inclination easily by fixing samples, such as a film, with a “Grip sheets” and using a “Milling Pro” cutting attachment together.
  • Fine tuning of an adjusted angle is possible by 0.2-degree unit at ±20 degrees. Since specular surface finish of the stage side is carried out at 40 mm x 40 mm, it is preeminent for the degree of adhesion of a sample.
  • Even if it adjusts an angle, the gap of the center of a sample side is designed to become the minimum. Since the circular plate is attached, the direction adjustment of X-Y is possible, with an angle of gradient fixed.
