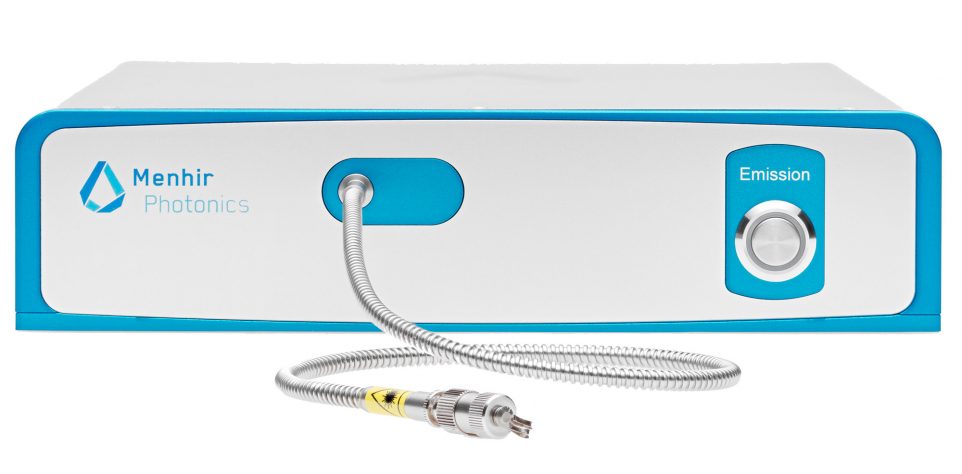

MENHIR-1550 GHz Repetition Rate fs Laser

Our partner  is devoted to offering cutting-edge femtosecond laser solutions allowing applications in any situation, from laboratories to harsh environment. Through innovative design and technology, we have developed femtosecond laser systems reaching a repetition rate up to 2.5 GHz with unprecedent reliability and noise-performances.

The MENHIR-1550 SERIES is the first femtosecond laser at 1550 nm with GHz repetition-rate reaching the industrial-quality required by customers.
Menhir Photonics femtosecond laser sources are based on robust and well-engineered designs, offering excellent reliability with the lowest phase noise and timing jitter on the market from soliton mode locking. Continuous 24/7 operation, user-friendly and self-starting, the MENHIR-1550 series has been designed to facilitate OEM integration and enable the specific customers’ needs.
Available in various versions with different repetition rates. Learn more on the characteristics of 250 MHz, 1 GHz and 2.5 GHz versions.

Key features

  • Ultra-low noise
  • Transform-limited pulses
  • Compact industrial design
  • Harsh environment resistant
  • User friendly
  • Turnkey system
  • 24/7 operation
  • All-in-one system

Applications

  • Quantum optics
  • Optical communication
  • THz generation
  • Timing distribution
  • Frequency combs …..more
  • Analog/digital converter
  • Ultra-low noise microwave generation

Key specifications

  • Wavelength: 1545 – 1565 nm
  • Rep. rate: 100 MHz – 2.5 GHz
  • Soliton pulses: < 250 fs

Options

  • frep and fCEO actuators
  • RF output
  • OEM version
  • Space-grade version

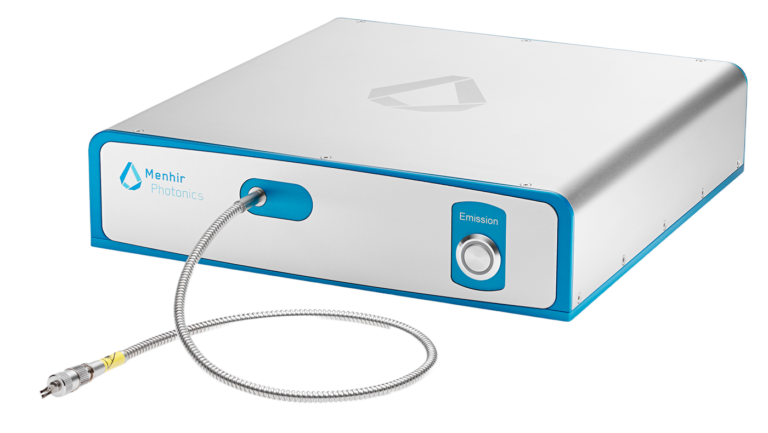

MENHIR-1550 SERIES

Product Specifications

MENHIR-1550 is available in various versions with different repetition rates.
Learn more about characteristics of 250 MHz, 1 GHz and 2.5 GHz versions.
Model No. MENHIR-1550 — 250 MHz MENHIR-1550 — 1 GHz MENHIR-1550 – 2.5 GHz
frep 250 MHz 1 GHz 2.5 GHz
Power > 100 mW > 50 mW > 20 mW
Wavelength 1545 – 1565 nm
Repetition Rate up to 2.5GHz
Clean soliton pulses < 250 fs
λ0 1545 – 1565 nm
  Clean soliton pulse
Bandwidth > 10 nm
Pulse width < 250 fs
  Sech2-shaped spectrum
Beam characteristics TEM00, M2< 1.05

Soliton Pulses

Clean optical spectrum





Phase noise & Timing-Jitter

Clean RF trace

Please contact us if you need more assistance or advice
