MANUAL PROBER

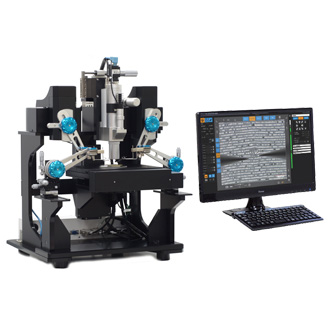

Manual prober


Features

All-in-one customized system for probing test.

  • Available to contact 1μm wiring pattern
  • Almost operation is available by electric movement under 3,000 magnification
  • By using the movement of microscope XY stage, it enables to contact 2 points
    even the 2 points are far and cannot observe 1 screen

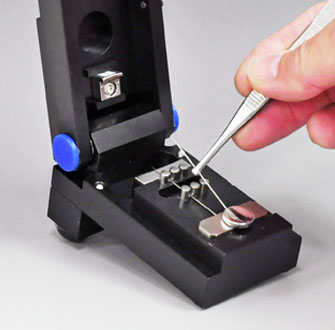

Probe Bender


Features

Useful accessory for bending tungsten probe by specific angle

  • Useful for situations where the object needs to be placed in a deep position and the standard tungsten probe cannot reach the surface under normal operation.
  • Easy setting
  • Place tungsten probe in position and close the cover as shown below.
  • Possible to change angle by replacing another block.
  • The accessory with Axis Pro can operate samplings which have never been operated.

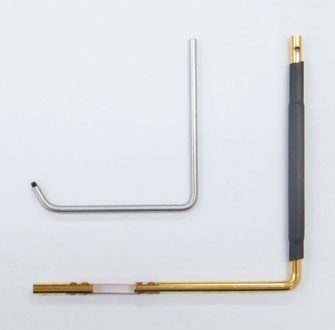

Electrode Holder


Features

Contact on tiny area of electrode-pad

  • Possible to contact with micro-size electrode pad easily.
  • Applicapable for DC measurement, Conduction check, resistance level measurement, etc.
  • Plate spring is attached with tip, so that possible to contact softly and keep the position of the contact.
  • BNC cable which can connect with the other devices. Our tungsten probe and other type probe can be attached.
  • Handles 5um-size wiring
