ACCESSORIES

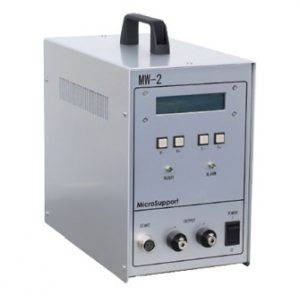

Micro spot welder
Features
Easy operation allows for precise welding.
- Micro-spot welding system was developed for small wiring like 30μm wire
- Welding conditions can be adjusted to deliver small currents.
- Welder delivers controlled current for successful welds.
- Energy stored in large capacity capacitor delivered as a pulse current to target.
- This produces high-quality welds and reduces the chance of surface flash, and sputtering.
- Features of the Micro-spot welding system are below.

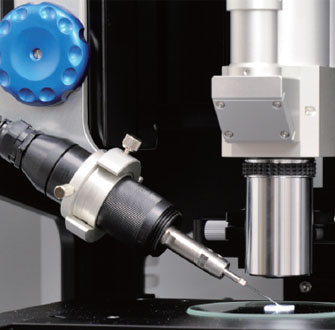

Milling Pro
Features
Micro precise scraping by attached with the manipulator, scrape the surface of the resin and other materials to extract particles buried in them.
The accessory can be also used to scrape glass silicon wafer, iron system metal, nonferrous metals and rocks, etc. While attached to Micro Support’s AxisPro and QuickPro, it is possible to extract foreign substance buried 2 to 300 μm below the surface with visual confirmation on a PC monitor. The milling area and depth can be controlled by software of AxisPro.
- Extract embedded foreign substance from resin material
- Planar cutting to exact part of a buried foreign substance (for ATR microscopy)
- Wide range plane cutting by fixed depth(50μm ~)
- Marking of glass, wafer, or a metal sample (for FIB processing)
- Pinpoint cutting of IC package or liquid crystal panel
- Contact with internal defect (sample pretreatment for X-ray microscopy or ruler drawing on an IC chip)

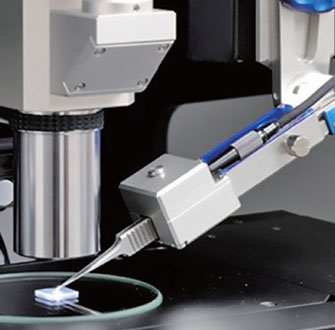

Microtweezer Tool Set
Features
Precise grasp without hand or machine-induced vibration.
- It is a micro tool to hold minute object easily (20μm or more).
- Useful accessory to grip a foreign substance out of adhesive sample.It is possible to operate it with our micromanipulators “AxisPro FC”, “AxisPro SS” and “QuickPro”.
- Move to the nearest position of the foreign substance.
- Access it, and then rotate a switch.
- Grip and isolate it.
- The exchange of tweezers is easy.

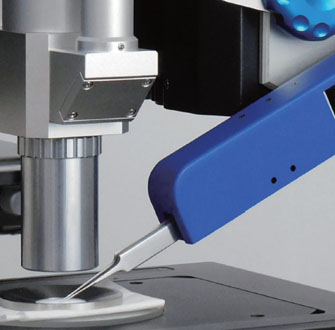

Electronic Microtweezer Tool Set
Features
Precise grasp using software of AxisPro.
- It is a micro tool to hold minute object easily (20μm or more).
- Useful accessory to grip a foreign substance out of adhesive sample.
- It is possible to operate it with our micromanipulators “AxisPro FC”, “AxisPro SS”.

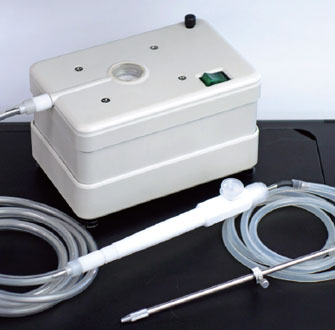

Vacuum Absorption Tool Set
Features
Easy pick-up by Absorption and discharge function.
- It is the vacuum tweezers system equipped with the suction and discharge (discharge pressure regulation mechanism built-in) function.
- The set can pick up and release 10μm size subject easily with I.D. 5μm size micropipette.
- When the button of a hand handle is pushed, it is a gadget which also becomes Micro Blowers.
- On top of that, adjustment of discharge pressure can also be simplified in adjustment of a main part knob.

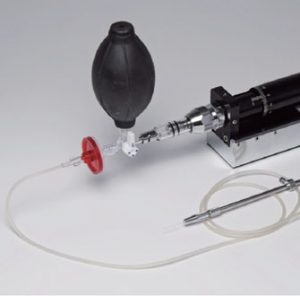

Micro injector
Features
Equipment to adsorb and release pico-liter liquid.
- A liquid can be adsorbed and dropped in picoliter volumes.
- Highly effective for sampling of a small-quantity of liquid or in a small hole.
- There are applications such as solvent dropping to dissolve a base material, or collecting liquid by dropping solvent onto stained area on a sample.

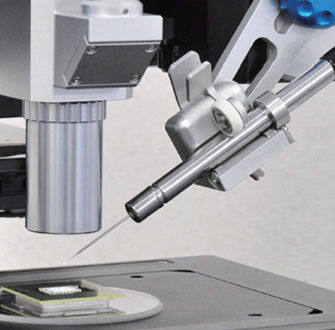

Super fine pitch rotator
Features
Thin foil lift-out by precise rotation mechanism
- Convenient tool for lifting out of a foil made with FIB by precise rotation mechanism
- Samples and foil may be easily released because of the three axis control of the manipulator and the rotation of the probe.
- The rotator can be attached with AxisPro SS, AxisPro FC and QuickPro.
- Glass tools with it may be used for lift-out, beside Tungsten probe and Tungsten Carbide tool with it can be also used for isolating particle.

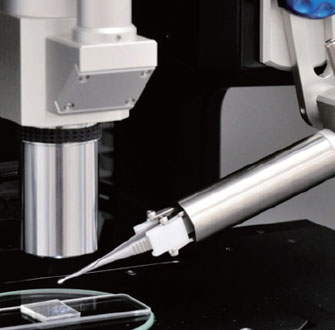

Micro Scissors
Features
Micro cutting under microscope. Possible to rotate an axis freely. The part of scissors can be detached to clean and change it.
- Fiber cutting
- Hair cutting
- Isolation simple it within adhesive sample
- Micro dissection
- Micro surgery (Experiment of insects, water creatures and animals)
- Pinpoint cutting of hair, fiber, etc is possible with “AxisPro FC”, “AxisPro SS” and “QuickPro”.
