MICRO TOOLS

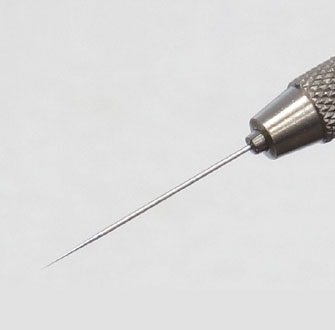

Tungsten probe

Features

The most used metal needle shaped.

  • Useful probe made by tungsten can pork, rub, shave, peel, cut and pickup various objects.
  • Variety line up from 0.2μm to 30μm size tip can operate various sample.
  • Tiny tip such as 0.2 μm can operate very tiny particle, while 10 um and 30 um size tip can be used by human hands.
  • We have manipulator handle and manual handle.

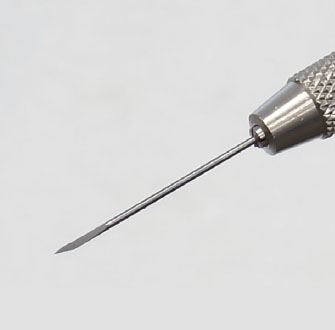

Tungsten carbide tool

Features

Useful for shaving material, marking on hard material.

  • This probes made from a hard metal are very useful for multiuse, such as cutting, poking, shaving, rubbing, cutting and etc.
  • 5 μm size probe can cut a tiny area of surface of hard material like metal, a silicon wafer, and glass, and mark targets before FIB processing.
  • Since the tip of the figure is flat-head screw driver shaped, “micro peeler” can operate various materials, such as plane cutting on the surface of a polymer material, such as a high barrier film, cutting of buried substance, excision of projective substances, pinpoint excision of IC bonding wire, and a cut of minute wiring.
  • “Knife edge” is very useful tool to extract a foreign substance buried in a tablet, nonferrous metal, a rigid plastic, etc.

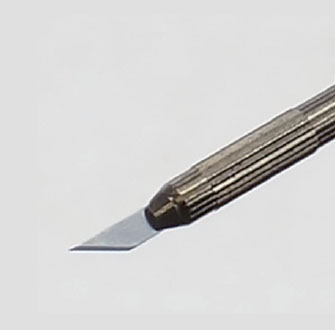

Micro Knife

Features

For cutting samples like film.

  • An overly precision knives made from stainless steel.
  • Easy to use for manual manipulation due to moderate bending.

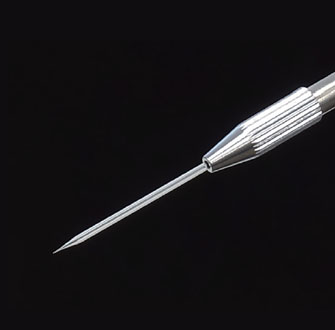

Glass Tool

Features

For liquid adsorption as nozzle of Vacuum Adsorption Tool Set.

  • They are glass “Micro Pipettes”, “Micro Sampling Tools” and “Micro Press Tools”.
  • The pipette (5, 10, 20μm) can perform adsorption and movement of a sample with “Vacuum Adsorption Tool Set”, or can perform suction and dropping of a solvent by “Micro injector”. If “Vacuum Adsorption Tool Set” is used, foreign substance and the spherical foreign substance of a fiber type with a difficult pickup can perform the positive sampling without fear of loss.
  • ”Micro Sampling Tool” with tip inside diameter 2μm is used for the liftout of the thin piece which carried out FIB processing. By using together micro pipettes (tip inside diameter 5μm), and carrying out both-arms operation by micro manipulator, the strike rate of lift out is markedly alike, and improves.
  • ”Micro Press Tools” is a serious epoch-making tool which can be crushed while sighting the extracted sample. Samples with the thickness which was suffering troubles until now is also made to the thinness which can be analyzed by using this tool by “Axis Pro”.

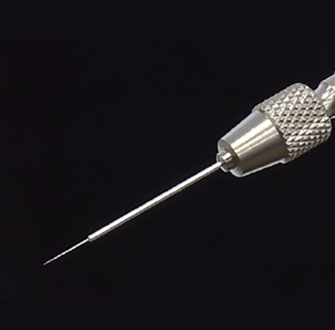

Flex Probe

Features

For extracting a foreign substance through a slit of 50 µm.

  • Made of PBT.

  • Allow for the removal of a sample from a tiny opening without causing harm to the nearby substance.
