Vibration Isolation Table with Tied Bar Supports
Our highest performance vibration isolation system utilizes independent isolation mechanisms for the horizontal and vertical axes.
This system achieves the highest performance and efficiency for the most demanding applications.
- This vibration isolator rapidly attenuates vibrations transmitted to mounted equipment and instruments, and is essential for equipment and instruments that are affected by vibration.
- The bench is lightweight and has excellent stiffness due to the steel honeycomb core.
- The top surface of the bench is made from a magnetic stainless steel with tapped holes (M6 25×25mm matrix).
- The manual leveling system does not require a continuous air supply. The isolators can be pressurized with just a hand air pump.
Optical Table with Pneumatic Supports
Optical Table with Rigid Supports
Table Top 200t + Support
|

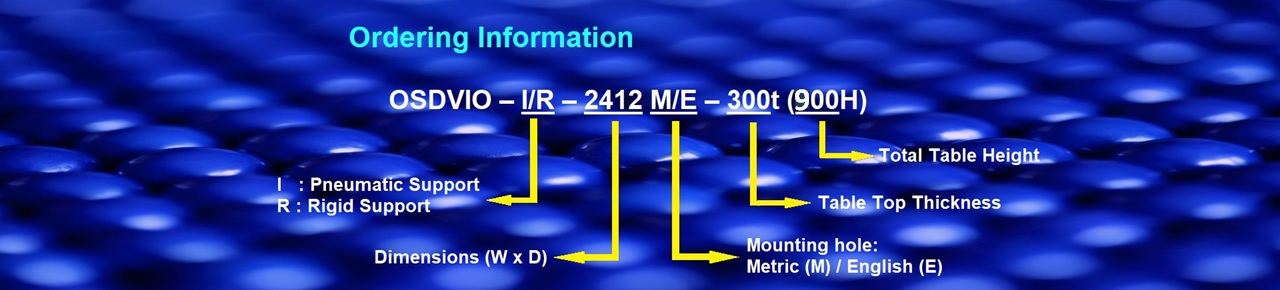

Model No. |
Dimensions |
Dimensions |
|
Wx DxH(mm) |
Wx DxH(inch) |
|
|
OSDVIO-I/R-1010M-200t(900H) |
1000x1000x H |
40 x 40 x H |
|
OSDVIO-I/R-1212M-200t(900H) |
1200x1200xH |
48 x 48 x H |
|
OSDVIO-I/R-1575M-200t(900H) |
1500x750xH |
60 x 30 x H |
|
OSDVIO-I/R-1509M-200t(900H) |
1500x900xH |
60 x 36 x H |
|
OSDVIO-I/R-1510M-200t(900H) |
1500x1000xH |
60 x 40 x H |
|
OSDVIO-I/R-1512M-200t(900H) |
1500x1200xH |
60 x 48 x H |
|
OSDVIO-I/R-1515M-200t(900H) |
1500x1500xH |
60 x 60 x H |
|
OSDVIO-I/R-1807M-200t(900H) |
1800x700xH |
72 x 28 x H |
|
OSDVIO-I/R-1875M-200t(900H) |
1800x750xH |
72 x 30 x H |
|
OSDVIO-I/R-1809M-200t(900H) |
1800x900xH |
72 x 36 x H |
|
OSDVIO-I/R-1810M-200t(900H) |
1800x1000xH |
72 x 40 x H |
|
OSDVIO-I/R-1812M-200t(900H) |
1800x1200xH |
72 x 48 x H |
|
OSDVIO-I/R-1815M-200t(900H) |
1800x1500xH |
72 x 60 x H |
|
OSDVIO-I/R-2009M-200t(900H) |
2000x900xH |
80 x 36 x H |
|
OSDVIO-I/R-2010M-200t(900H) |
2000x1000xH |
80 x 40 x H |
|
OSDVIO-I/R-2012M-200t(900H) |
2000x1200xH |
80 x 48 x H |
|
OSDVIO-I/R-2015M-200t(900H) |
2000x1500xH |
80 x 60 x H |
|
OSDVIO-I/R-2409M-200t(090H) |
2400x900xH |
96 x 36 x H |
|
OSDVIO-I/R-2410M-200t(900H) |
2400x1000xH |
96 x 40 x H |
|
OSDVIO-I/R-2412M-200t(900H) |
2400x1200xH |
96 x 48 x H |
Table Top 300t + Support
| Model No. | Dimensions | Dimensions |
| W x D x H(mm) | W x D x H(inch) | |
| OSDVIO-I/R-1010M-300t(900H) | 1000x1000xH | 40 x 40 x H |
| OSDVIO-I/R-1212M-300t(900H) | 1200x1200xH | 48 x 48 x H |
| OSDVIO-I/R-1575M-300t(900H) | 1500x750xH | 60 x 30 x H |
| OSDVIO-I/R-1509M-300t(900H) | 1500x900xH | 60 x 36 x H |
| OSDVIO-I/R-1510M-300t(900H) | 1500x1000xH | 60 x 40 x H |
| OSDVIO-I/R-1512M- 300t(900H) | 1500x1200xH | 60 x 48 x H |
| OSDVIO-I/R-1515M-300t(900H) | 1500x1500xH | 60 x 60 x H |
| OSDVIO-I/R-1875M-300t(900H) | 1800x750xH | 72 x 30 x H |
| OSDVIO-I/R-1809M-300t(900H) | 1800x900xH | 72 x 36 x H |
| OSDVIO-I/R-1810M-300t(900H) | 1800x1000xH | 72 x 40 x H |
| OSDVIO-I/R-1812M-300t(900H) | 1800x1200xH | 72 x 48 x H |
| OSDVIO-I/R-1815M-300t(900H) | 1800x1500xH | 72 x 60 x H |
| OSDVIO-I/R-2009M-300t(900H) | 2000x900xH | 80 x 36 x H |
| OSDVIO-I/R-2010M-300t(900H) | 2000x1000xH | 80 x 40 x H |
| OSDVIO-I/R-2012M-300t(900H) | 2000x1200xH | 80 x 48 x H |
| OSDVIO-I/R-2015M-300t(900H) | 2000x1500xH | 80 x 60 x H |
| OSDVIO-I/R-2409M-300t(900H) | 2400x900xH | 96 x 36 x H |
| OSDVIO-I/R-2410M-300t(900H) | 2400x1000xH | 96 x 40 x H |
| OSDVIO-I/R-2412M-300t(900H) | 2400x1200xH | 96 x 48 x H |
| OSDVIO-I/R-2415M-300t(900H) | 2400x1500xH | 96 x 60 x H |
| OSDVIO-I/R-2515M-300t(900H) | 2500x1500xH | 100 x 60 x H |
| OSDVIO-I/R-3009M-200t(900H) | 3000x900xH | 120 x 36 x H |
| OSDVIO-I/R-3010M-200t(900H) | 3000x1000xH | 120 x 40 x H |
| OSDVIO-I/R-3012M-200t(900H) | 3000x1200xH | 120 x 48 x H |
| OSDVIO-I/R-3015M-200t(900H) | 3000x1500xH | 120 x 60 x H |
| OSDVIO-I/R-3612M-200t(900H) | 3600x1200xH | 144 x 48 x H |
| OSDVIO-I/R-3615M-200t(900H) | 3600x1500xH | 144 x 60 x H |
Table Top 400t + Support
| Model No. | Dimensions | Dimensions |
| W x D x H(mm) | W x D x H(inch) | |
| OSDVIO-I/R-1812M-400t(900H) | 1800 x 1200 x H | 72 x 48 x H |
| OSDVIO-I/R-1815M-400t(900H) | 1800 x 1500 x H | 72 x 60 x H |
| OSDVIO-I/R-2010M-400t(900H) | 2000 x 1050 x H | 80 x 40 x H |
| OSDVIO-I/R-2012M-400t(900H) | 2000 x 1200 x H | 80 x 48 x H |
| OSDVIO-I/R-2015M-400t(900H) | 2000 x 1500 x H | 80 x 60 x H |
| OSDVIO-I/R-2409M-400t(900H) | 2400 x 900 x H | 96 x 36 x H |
| OSDVIO-I/R-2410M-400t(900H) | 2400 x 1000 x H | 96 x 40 x H |
| OSDVIO-I/R-2412M-400t(900H) | 2400 x 1200 x H | 96 x 48 x H |
| OSDVIO-I/R-2415M-400t(900H) | 2400 x 1500 x H | 96 x 60 x H |
| OSDVIO-I/R-3009M-400t(900H) | 3000 x 900 x H | 120 x 36 x H |
| OSDVIO-I/R-3010M-400t(900H) | 3000 x 1000 x H | 120 x 40 x H |
| OSDVIO-I/R-3012M-400t(900H) | 3000 x 1200 x H | 120 x 48 x H |
| OSDVIO-I/R-3015M-400t(900H) | 3000 x 1500 x H | 120 x 60 x H |
| OSDVIO-I/R-3612M-400t(900H) | 3600 x 1200 x H | 144 x 48 x H |
| OSDVIO-I/R-3615M-400t(900H) | 3600 x 1500 x H | 144 x 60 x H |
Optical Table (Breadboard 50t + Support)
| Model No. | Dimensions | Dimentions | |
| W x D x H(mm) | W x D x H(inch) | ||
| OSDVIO-I/R-0906M-50t(900H) | 900 x 600 x H | 36 x 24 x H | |
| OSDVIO-I/R-0907M-50t(900H) | 900 x 700 x H | 36 x 28 x H | |
| OSDVIO-I/R-0975M-50t(900H) | 900 x 750 x H | 36 x 30 x H | |
| OSDVIO-I/R-0909M-50t(900H) | 900 x 900 x H | 36 x 36 x H | |
| OSDVIO-I/R-1005M-50t(900H) | 1000 x 500 x H | 40 x 20 x H | |
| OSDVIO-I/R-1006M-50t(900H) | 1000 x 600 x H | 40 x 24 x H | |
| OSDVIO-I/R-1007M-50t(900H) | 1000 x 700 x H | 40 x 28 x H | |
| OSDVIO-I/R-1075M-50t(900H) | 1000 x 750 x H | 40 x 30 x H | |
| OSDVIO-I/R-1009M-50t(900H) | 1000 x 900 x H | 40 x 36 x H | |
| OSDVIO-I/R-1010M-50t(900H) | 1000 x 1000 x H | 40 x 40 x H | |
| OSDVIO-I/R-1206M-50t(900H) | 1200 x 600 x H | 48 x 24 x H | |
| OSDVIO-I/R-1207M-50t(900H) | 1200 x 700 x H | 48 x 28 x H | |
| OSDVIO-I/R-1275M-50t(900H) | 1200 x 750 x H | 48 x 30 x H | |
| OSDVIO-I/R-1209M-50t(900H) | 1200 x 900 x H | 48 x 36 x H | |
| OSDVIO-I/R-1210M-50t(900H) | 1200 x 1000 x H | 48 x 40 x H | |
| OSDVIO-I/R-1212M-50t(900H) | 1200 x 1200 x H | 48 x 48 x H | |
| OSDVIO-I/R-1306M-50t(900H) | 1300 x 600 x H | 52 x 24 x H | |
| OSDVIO-I/R-1506M-50t(900H) | 1500 x 600 x H | 60 x 24 x H | |
| OSDVIO-I/R-1507M-50t(900H) | 1500 x 700 x H | 60 x 28 x H | |
| OSDVIO-I/R-1575M-50t(900H) | 1500 x 750 x H | 60 x 30 x H | |
| OSDVIO-I/R-1509M-50t(900H) | 1500 x 900 x H | 60 x 36 x H | |
| OSDVIO-I/R-1510M-50t(900H) | 1500 x 1000 x H | 60 x 40 x H | |
| OSDVIO-I/R-1512M-50t(900H) | 1500 x 1200 x H | 60 x 48 x H | |
| OSDVIO-I/R-1806M-50t(900H) | 1800 x 600 x H | 72 x 24 x H | |
| OSDVIO-I/R-1807M-50t(900H) | 1800 x 700 x H | 72 x 28 x H | |
| OSDVIO-I/R-1809M-50t(900H) | 1800 x 900 x H | 72 x 26 x H | |
| OSDVIO-I/R-1812M-50t(900H) | 1800 x 1200 x H | 72 x 48 x H | |
| OSDVIO-I/R-2010M-50t(900H) | 2000x 1000 x H | 80 x 40 x H | |
| OSDVIO-I/R-2012M-50t(900H) | 2000 x 1200 x H | 80 x 48 x H | |
| OSDVIO-I/R-2409M-50t(900H) | 2400 x 900 x H | 96 x 36 x H | |
| OSDVIO-I/R-2412M-50t(900H) | 2400 x 1200 x H | 96 x 48 x H | |
Optical Table (Breadboard 100t + Support)
| Model No. | Dimensions | Dimensions |
| W x D x H(mm) | W x D x H(inch) | |
| OSDVIO-I/R-0906M-100t(900H) | 900 x 600 x H | 36 x 24 x H |
| OSDVIO-I/R-0907M-100t(900H) | 900 x 700 x H | 36 x 28 x H |
| OSDVIO-I/R-0975M-100t(900H) | 900 x 750 x H | 36 x 30 x H |
| OSDVIO-I/R-0909M-100t(900H) | 900 x 900 x H | 36 x 36 x H |
| OSDVIO-I/R-1005M-100t(900H) | 1000 x 500 x H | 40 x 20 x H |
| OSDVIO-I/R-1006M-100t(900H) | 1000 x 600 x H | 40 x 24 x H |
| OSDVIO-I/R-1007M-100t(900H) | 1000 x 700 x H | 40 x 28 x H |
| OSDVIO-I/R-1075M-100t(900H) | 1000 x 750 x H | 40 x 30 x H |
| OSDVIO-I/R-1009M-100t(900H) | 1000 x 900 x H | 40 x 36 x H |
| OSDVIO-I/R-1010M-100t(900H) | 1000 x 1000 x H | 40 x 40 x H |
| OSDVIO-I/R-1206M-100t(900H) | 1200 x 600 x H | 48 x 24 x H |
| OSDVIO-I/R-1207M-100t(900H) | 1200 x 700 x H | 48 x 28 x H |
| OSDVIO-I/R-1275M-100t(900H) | 1200 x 750 x H | 48 x 30 x H |
| OSDVIO-I/R-1209M-100t(900H) | 1200 x 900 x H | 48 x 36 x H |
| OSDVIO-I/R-1210M-100t(900H) | 1200 x 1000 x H | 48 x 40 x H |
| OSDVIO-I/R-1212M-100t(900H) | 1200 x 1200 x H | 48 x 8 x H |
| OSDVIO-I/R-1506M-100t(900H) | 1500 x 600 x H | 52 x 24 x H |
| OSDVIO-I/R-1507M-100t(900H) | 1500 x 700 x H | 60 x 24 x H |
| OSDVIO-I/R-1575M-100t(900H) | 1500 x 750 x H | 60 x 28 x H |
| OSDVIO-I/R-1509M-100t(900H) | 1500 x 900 x H | 60 x 36 x H |
| OSDVIO-I/R-1510M-100t(900H) | 1500 x 1000 x H | 60 x 40 x H |
| DVIO-I/R-1512M/E-100t(900H) | 1500 x 1200 x H | 60 x 48 x H |
| OSDVIO-I/R-1806M-100t(900H) | 1800 x 600 x H | 72 x 24 x H |
| OSDVIO-I/R-1807M-100t(900H) | 1800 x 700 x H | 72 x 28 x H |
| OSDVIO-I/R-1809M-100t(900H) | 1800 x 900 x H | 72 x 26 x H |
| OSDVIO-I/R-1812M-100t(900H) | 1800 x 1200 x H | 72 x 48 x H |
| OSDVIO-I/R-2010M-100t(900H) | 2000x 1000 x H | 80 x 40 x H |
| OSDVIO-I/R-2012M-100t(900H) | 2000 x 1200 x H | 80 x 48 x H |
| OSDVIO-I/R-2409M-100t(900H) | 2400 x 900 x H | 96 x 36 x H |
| OSDVIO-I/R-2410M-100t(900H) | 2400 x 1000 x H | 96 x 40 x H |
| OSDVIO-I/R-2412M-100t(900H) | 2400 x 1200 x H | 96 x 48 x H |
